Seamless Automation for Machined Component Flow in Automotive Manufacturing

maintenance-friendly_!

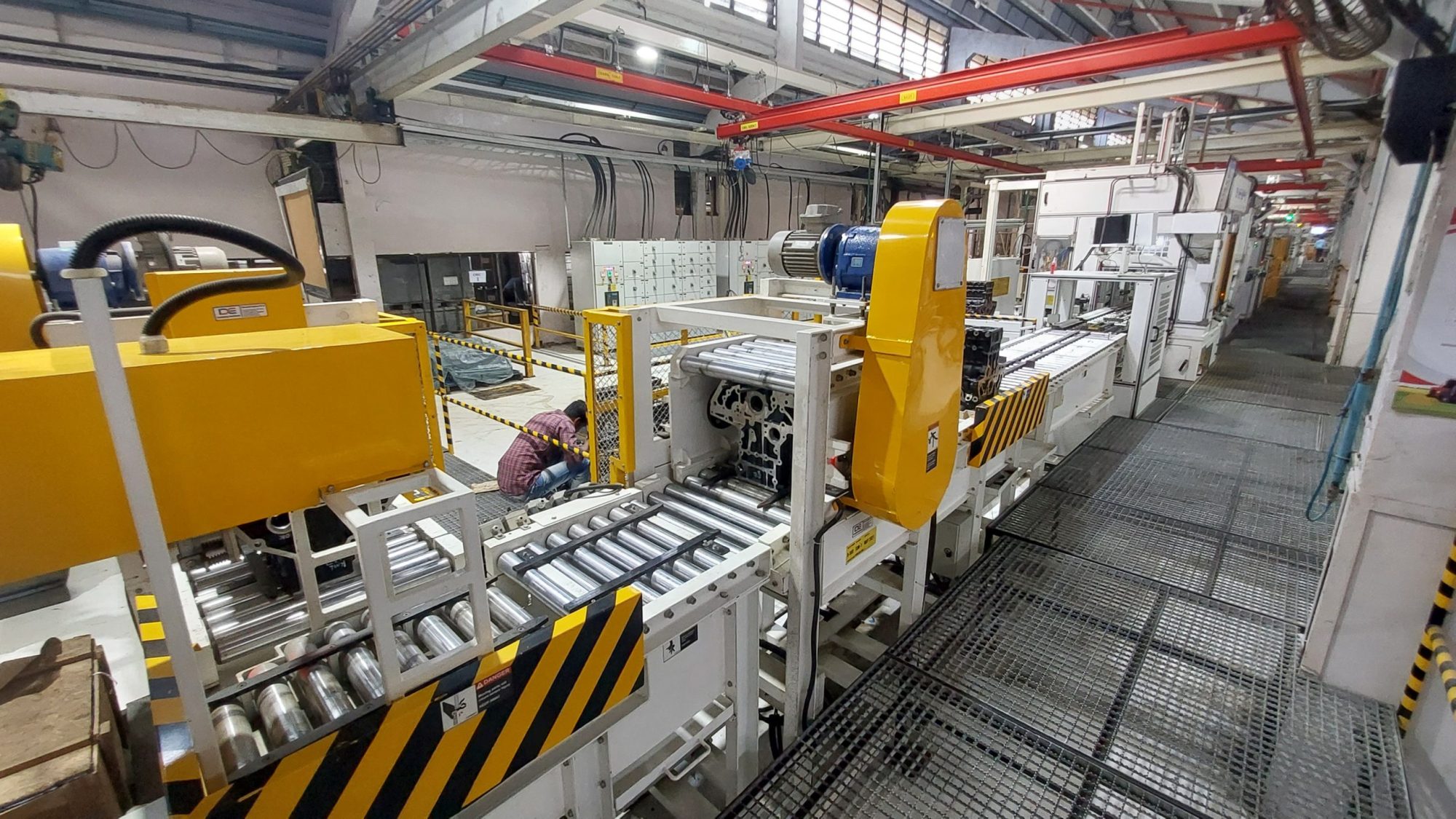

Automobile Component Machine Shop Conveying System

Industry: Automobile Components

Material Handled: Cast Iron Automobile Tractor Components, Automotive engine and transmission components

Activity to be Mechanized/Automated:

  • Automobile Component Machining Line with multi-function machines that need to be connected with conveyors and component orienting devices.
  • Automated conveying of machined components within the work-cell with minimum intervention of machine operators.

Challenges vs Solutions

Challenges Solutions

Error Free conveying with Safety, Care and Time Efficiency between machines

Idler Roller Conveyors Using Karakuri and Gravity flow, enabled effective use of slopes for majority of the conveying.

To Match the takt times of the machine processes and ensure component flow is smooth and reliable.

Power Roller Conveyors These are bottom transmission type conveyors for matching machine heights.

Machines and interconnected material handling devices need to be integrated into the design and execution of the project

Powered Tumbling Units For changing the orientation of component from Front/Side leading to its diametrically opposite end leading or trailing.

Powered Tilting Units For changing the orientation of the component from horizontal to vertical and vice versa.

Powered Lifting Lowering and Turning Units To match the levels of the machines/ conveyors and effect and change in orientation to suit the layout accordingly.

Results / Benefits:

  • Cost Effective: Lowest Cost of Ownership from a minimum 1 year period ROI.

  • Increased Efficiency: Movement of Components automatically saves efforts, time, multiple handling, operator safety, errors and improves effectiveness.

  • Energy Saving: IE 3+ Motors with energy and torque efficient transmission systems.

  • Low Capital Investment: Using available, proven technology and components makes it one of the lowest capital intensive equipment.

  • 24x7x365 Running Capacity: Maintenance friendly systems make it have very low un-planned downtime.

  • High Productivity: Using latest technology increases reliability of operation and stretched capacity utilization for higher productivity
